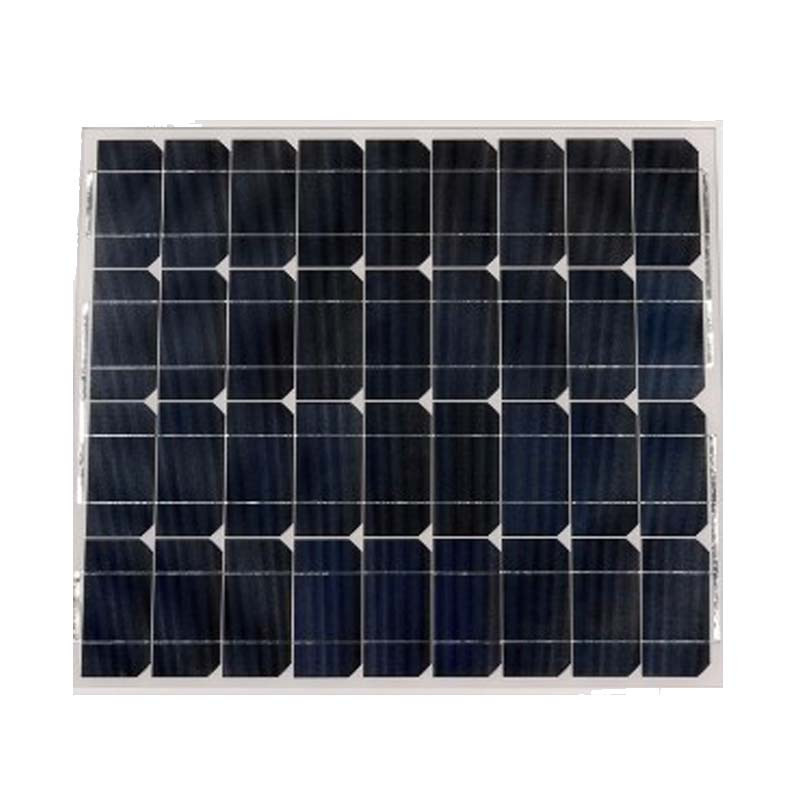

Victron 55W 12V Monocrystalline Series Panel

Victron Solar Panel 55W Monocrstalline Series 4c 715x445x25mm - SPM040553603

A High quality Victron BlueSolar 55W Monocrystalline Solar Panel - 5 Year Material Warranty and 25 Year warranty on power output and performance.

Silver Anodized Aluminium Frame, with Tempered Glass, Cable Terminated with standard MC4 Connectors.

Features & Specifications

- Low voltage-temperature coefficient enhances high-temperature operation.

- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.

- 25-Year limited warranty on power output and performance.

- 5-Year limited warranty on materials and workmanship.

- Sealed, waterproof, multi-functional junction box gives high level of safety.

- High performance bypass diodes minimize the power drop caused by shade.

- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.

- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance

- High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

Electrical Properties

Cell Type: Monocrystalline

Nominal Power (Pmpp): 55W

Max Power Voltage (Vmpp): 18.8V

Max Power Current (Impp): 2.94A

Open Circuit Voltage (Voc): 22.9V

Short Circuit Current (Isc): 3.22A

Panel Properties

Weight: 4KGS

Dimensions: 715 x 415 x 25mm

Product Warranty: 5 Years

Output Warranty: 25 Years
