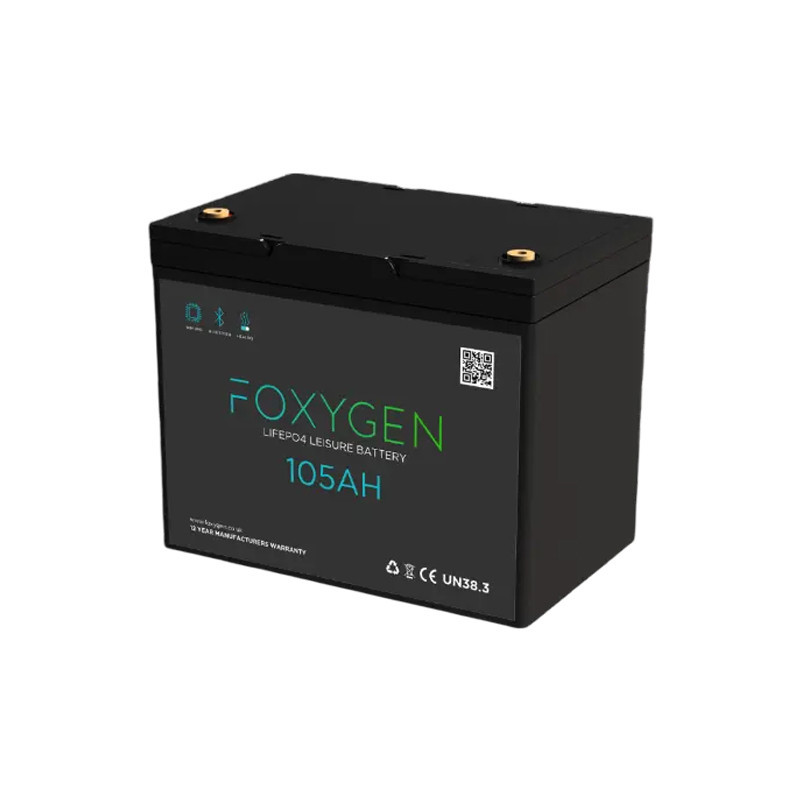

FOXYGEN - 105Ah Lithium Battery with Bluetooth & Heating

FOXYGEN 105Ah Lithium Battery with Bluetooth and Heating.

The Foxygen 12V 105Ah Lithium Leisure Battery is designed to deliver reliable, long-lasting power for leisure and off-grid applications. Built with high-quality LiFePO4 prismatic cells, it provides excellent performance, superior safety, and an extended service life of up to 6000 cycles at 80% depth of discharge.

This smart leisure battery features an advanced Battery Management System (BMS) rated at 100A, ensuring complete protection against overcharge, over-discharge, overcurrent, overheating and short circuits. It also includes Bluetooth connectivity for real-time monitoring via Android and iOS devices, as well as a switchable heating system that maintains efficiency even in low temperatures.

With its compact ABS casing, IP65 rating and a lightweight design of just 10.5kg, the FOX12V-105AH is easy to install and transport, making it an excellent replacement for traditional lead-acid batteries. Whether you’re powering a caravan, campervan, motorhome, marine system, or an off-grid installation, this battery offers high efficiency, fast charging and dependable performance.

Features

12V 105Ah LiFePO4 battery for dependable long-term energy storage.

Smart BMS with full protection against overcharge, over-discharge, overcurrent, overheating and short circuits.

Bluetooth connectivity for real-time monitoring on Android and iOS devices.

Switchable heating function for safe charging in low temperatures.

Up to 6000 cycles at 80% depth of discharge for extended service life.

Lightweight design at just 10.5kg for easy installation and transport.

IP65-rated ABS casing for protection against dust and water ingress.

12-year warranty for complete peace of mind.

Electrical Specifications

Nominal Voltage: 12.8V

Nominal Capacity: 105Ah

Parallel Connection: Max 6 Units

Series Connection: Max 4 Units

BMS: 4S100A

Bluetooth: Android/iOS

Heat: Yes (Switchable)

Circuit Protection: Overcharge, Over discharge, Overcurrent, Over Temperature, Short Balance, Low temp

Cycle Life: 6000 times @80% DOD

Self Discharge: Less than 3% per month

Charge Efficiency: 100% @0.2C

Discharge Efficiency: 98-100% @1C

Charge Specifications

Charge Voltage: 14.4 ± 0.2V

Standard Current: 21A

Fast Current: 62.5A

Discharge Specifications

Standard Current: 21A

Max Continuous Current: 100A

Cut-Off Voltage: 10V

Mechanical Specifications

Dimensions: 260mm x 170mm x 208mm

Approx. Weight: 10.64 kg

Terminal Type: M8

Case Colour/Material: Black Plastic Case (ABS)

IP Rating: IP65

Cell Type: 3.2V 105Ah Prismatic Cell

Cell Configuration: 4S1P

Temperature Specifications

Charge Temp: -20°C to 55°C (-4°F to 140°F)

Discharge Temp: -20°C to 60°C (-4°F to 140°F)

Storage Temp: -5°C to 45°C (23°F to 113°F)
