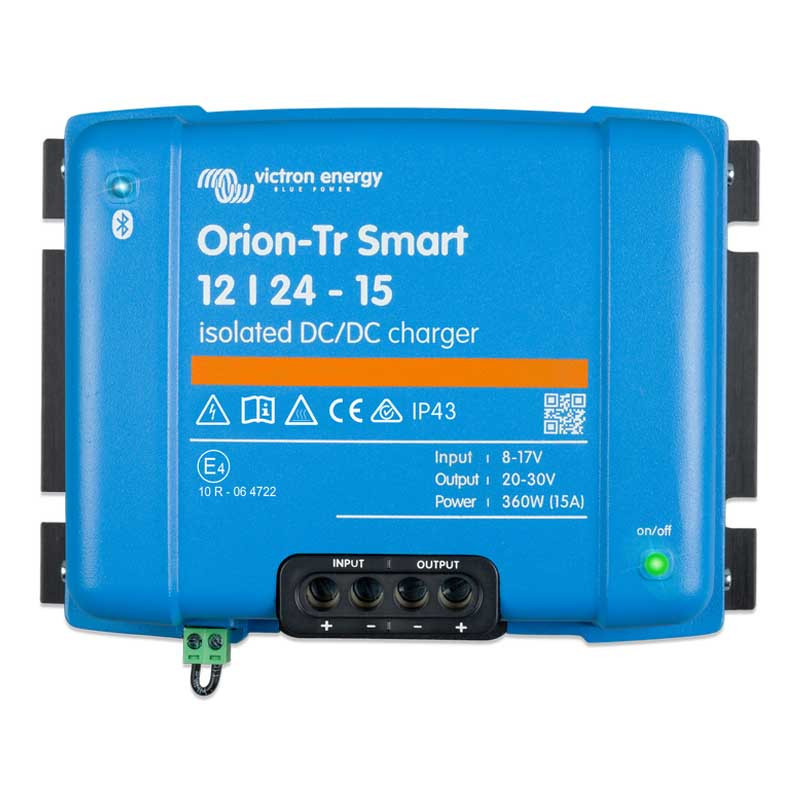

Victron Orion-Tr Smart 12/24 15A DC-DC charger (360W) Isolated

Victron Orion-Tr Smart DC-DC Charger 12/24-15A 360W Isolated.

The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or as a power supply (it is also designed for use
as a constant voltage source), offering a wide input and output voltage range.

This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is
running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops.

In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from
discharge.

Features & Specifications

Voltage Range: Input 8-17V Output 18-30V

Current Rating: 15A

Charging: 360-430W Max

Display: LED Power & Charge Status

Dimensions: H130 x W186 x D70mm Weight 1.6Kg

Warranty: 5 Years

Bluetooth Smart enabled

- Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and
to update the charger when new software features become available.

- Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the
Device list page without the need to connect to the product.

Fully programmable

- Battery charge algorithm (configurable) or fixed output.

- Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk – absorption – float

- For lead acid batteries it is important that during shallow discharges the absorption time is kept short in
order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically
increased to make sure that the battery is completely recharged.

- For lithium batteries absorption time is fixed, default 2 hours.

- Alternatively, a fixed output voltage can be chosen.

Remote on/off
A remote on/off switch or relay contact can be connected to a two-pole connector.
Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal
(left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)
- The built-in engine shutdown detection will stop the converter when the engine is not running.
- This prevents unwanted discharge of the starter battery (see manual for details).

All models are short-circuit proof and can be paralleled to increase output current

- An unlimited number of units can be connected in parallel.

High temperature protected
- The output current will reduce at high ambient temperature.

IP43 protection
- When installed with the screw terminals oriented downwards.

Screw terminals
- No special tools needed for installation
