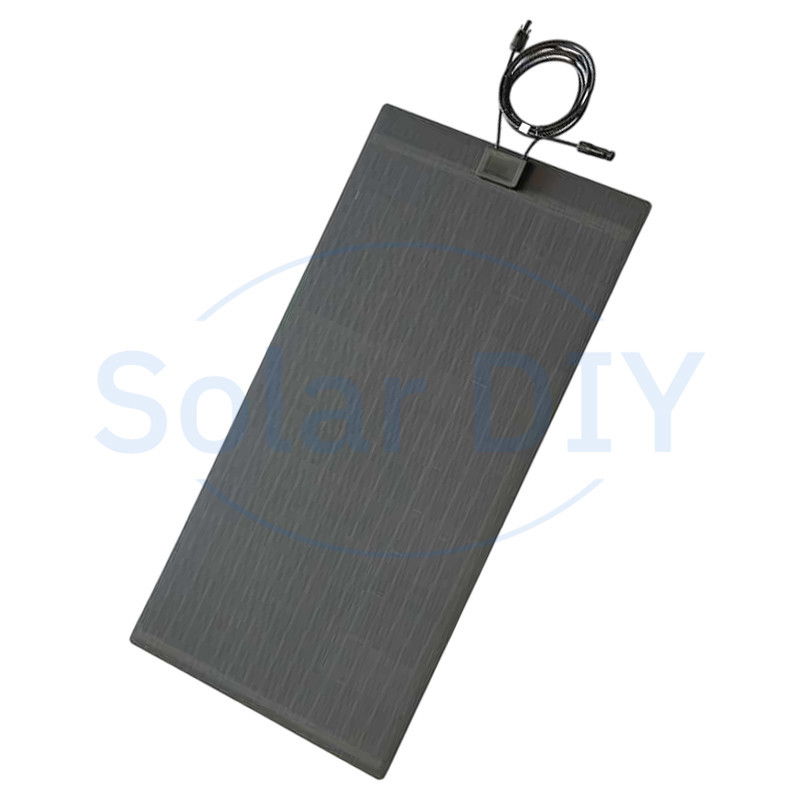

75W ETFE Semi-Flexible Solar Panel OS75-20MFX

75W ETFE Semi-flexible Solar Panel 960 x 500 x 2.5mm Front Exit OS75-20MFX

75W super lightweight, ETFE panel, with front (top exit) junction box.

These hardy panels come with an IP67 waterproof rating. The top of the panel is coated in an ETFE material (Ethylene Tetrafluoroethylene) and the rear backsheet is fibreglass.

The ETFE surface material makes the panel extremely lightweight, whilst at the same time, increasing the physical and chemical protection of the panel.

Their high resistance to salt spray, corrosion and weathering make them ideal for use on houseboats, yachts and caravans.

The ETFE texture on the top side also increases the panel's absorbency by reducing its reflectivity.

Panel comes with a front junction with 1.5m 2.5mm² Cables with MC4 Connectors. The panels are semi-rigid, and have a maximum bend of 10%. Their flexibility as well as their ultra low profile makes them perfect for slightly curved surfaces such as narrowboat or motorhome roofs.

Features & Specifications

- Low Installation Profile

- Top layer ETFE Material for increased absorbtion and durability

- Fibreglass Backsheet

- Front Cable Exits for flush mounting

- Lightweight construction

- 2 x 10A Bypass Diodes

Electrical Properties

Cell Type: Monocrystalline

Cell Quantity: 156

Nominal Power (Pmpp): 75W

Max Power Voltage (Vmpp): 20.0V

Max Power Current (Impp): 3.75A

Open Circuit Voltage (Voc): 23.6V

Short Circuit Current (Isc): 4.12A

Maximum System Voltage: 500V

Panel Properties

Weight: <3 Kgs

Dimensions: 960 x 500 x 2.5mm

Product Warranty: 2 Years
