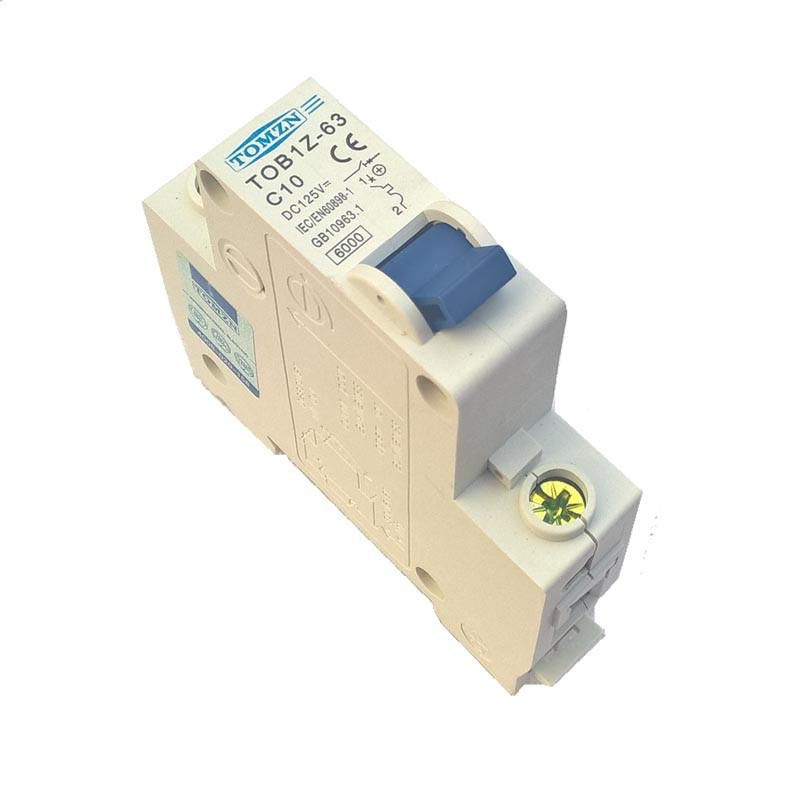

DC Breaker 10A - 40A 125V

DC Breaker 10A to 40A Din Mountable (Din Rail Not Included)

Give your Installation that extra degree of protection with our DC Circuit Breakers, C Curve, 35mm Din Rail Mountable - Rails Available Here

With one of our optional 35mm Din Rails installation is a breeze, simply mount the rail in a suitable location, snap on the MCB and connect the cables - (Positive Input into the top of the MCB).

Complete with Thermal Short Circuit, Current Overloading protection and a mechanical lifespan of over 20,000 actuations this is a perfect accompaniment to any DC Installation.

Features & Specifications

DC Voltage: 125V Max

Rated Current: Per Selection

Breaking Capacity: 6KA

Standard: IEC60947, IEC60898

Mounting: 35mm Din Rail (Not Included)

Type: Min

Poles: 1

Characteristic Curve: B,CD Type
