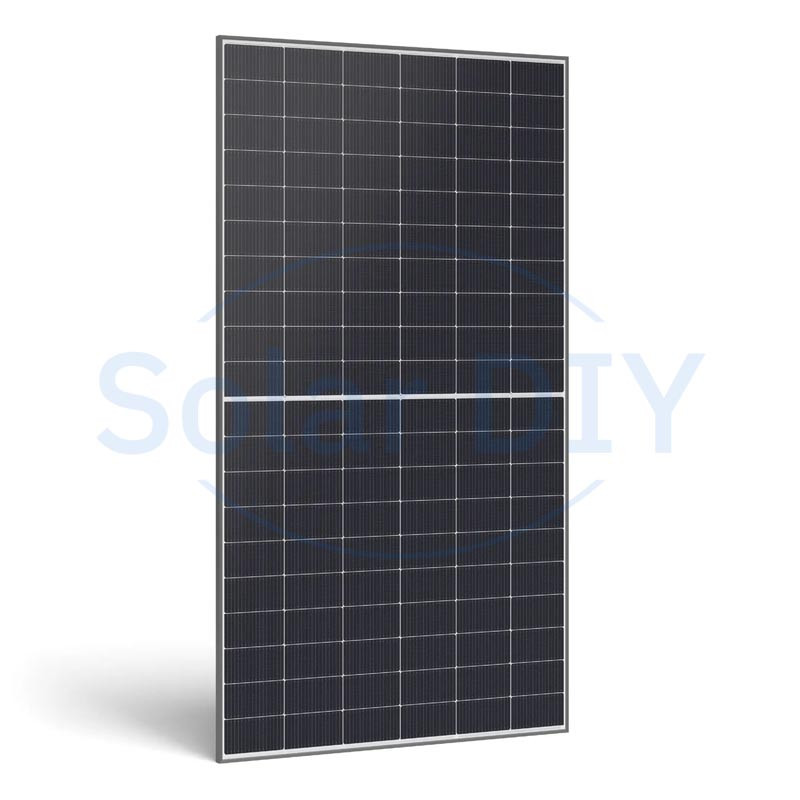

JA Solar 535W Monocrystalline Bi-facial Half Cell Panel

JA Solar 535W JAM60D42 LB BF Black Framed  Monocrystalline Half Cell Solar Panel

Assembled with the 11BB PERC Cells the half cell configuration of the module offers the advantages of hoiger power output.

Offers better temperature-dependant performance, reduced shading effect on the energy generation.

Lower risks of hot-spots as well as enhanced tolerances for mechanical loading.

MC4 Connectors for PV Cable Connections

Features & Specifications

- Higher Output Power

- Less shading and lower resistive loss

- Lower LCOE

- Better Mechanical Loading Tolerance

- 12 Year Prodcut Warranty

- 25 Year Linear Power Output Warranty

- Comprehensive Certification

Electrical Properties

STC (Standard Test Conditions)

Cell Type: Monocrystalline

Nominal Power (Pmpp): 535W (578W with 10% Solar Irradience

Max Power Voltage (Vmpp): 37.03V

Max Power Current (Impp): 14.45A

Open Circuit Voltage (Voc): 44.13V

Short Circuit Current (Isc): 15.31A

Panel Properties

Weight: 28.8KGS

Dimensions: 2063 x 1134 x 30mm +-2mm

Product Warranty: 12 Years

Output Warranty: 25 Years
