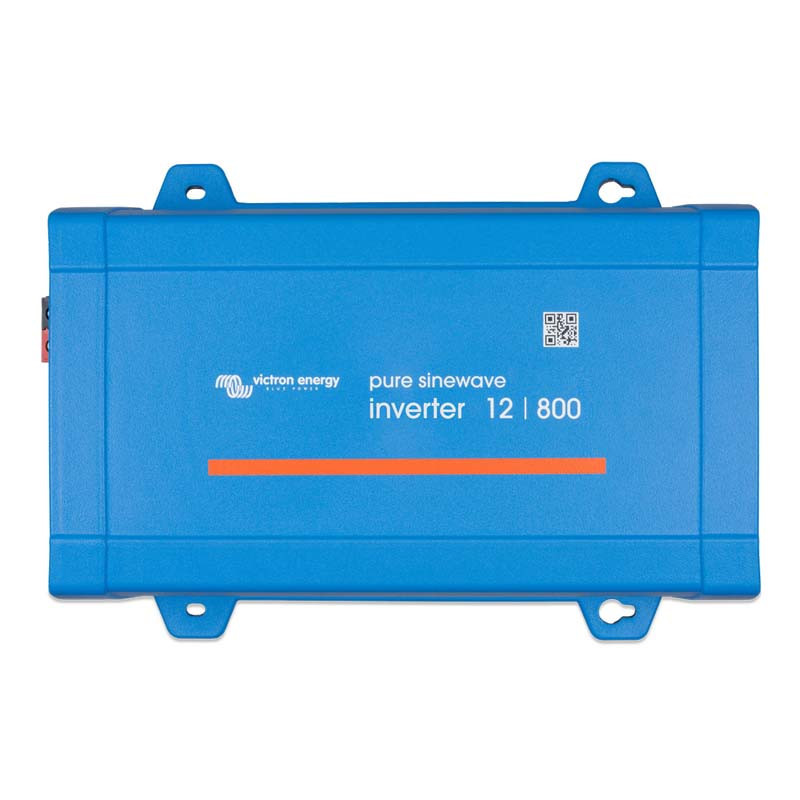

Victron Phoenix 12/800 VE.Direct 230V UK Pin

Victron Phoenix 12/800 VE.Direct 230V UK Pin.

This Victron Phoenix 12/800 Pure Sine Inverter converts 12V DC to a 230V AC Mains output.  Maximum continuous power is 650W with a high startup load of 1500W.

The Victron Pure Sinewave Inverters have proven their reliability over many years.

A Pure Sinewave output from the Victron Phoenix range offers a clean supply sometimes even cleaner the the output from the grid supply.  This clean supply is perfect for sensitive electronic equipment

Perfect for use in cars, vans, caravans, boats and other applications with a 12V supply..

With an optional VE.Direct Bluetoth Dongle you can manage and monitor the inverter on iOS or Android devices with the Victron Connect App.

Features & Specifications

Input Voltage: 12V DC

Output Voltage: 215-240V AC

Output Power: Continuous 650W, Peak 1500W

The VE.Direct port can be connected to:

- A computer (VE.Direct to USB interface cable needed)

- Apple and Android smartphones, tablets, MacBook’s and other devices
(VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

- Low battery voltage alarm trip and reset levels

- Low battery voltage cut-off and restart levels

- Dynamic cut-off: load dependent cut-off level

- Output voltage 210 - 245V

- Frequency 50 Hz

- ECO mode on/off and ECO mode sense level

Monitoring:

- In-and output voltage, % load and alarms

Proven reliability

- The full bridge plus toroidal transformer topology has proven its reliability over many years.

- The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

- High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in
standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level,
the inverter will remain on.

Remote on/off
A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the
two-pole connector.

Dimensions: H105 x W216 x D305mm Weight 5.5Kg

Warranty: 5 Years (Extendable to 10 Years)
