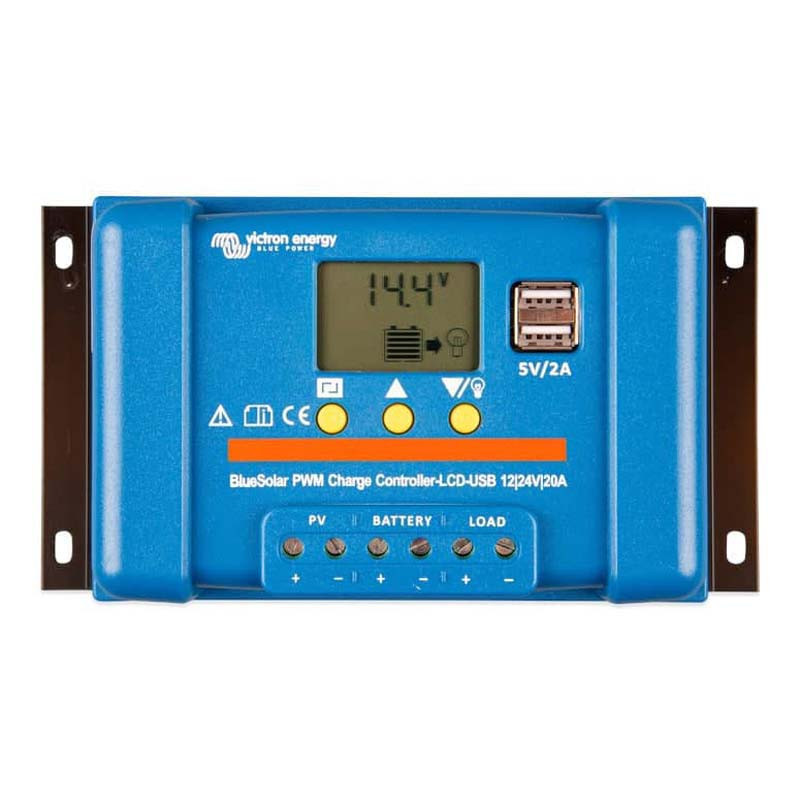

Victron BlueSolar 20A PWM LCD USB 12/24V

Quality Victron 20A PWM Solar Charge Controller with USB Charging ports.

A simple and cost effective Victron charge controller for basic applications up to 200W (12V).

This PWM (Pulse Width Modulation) controller is ideal for smaller 12V or 24V solar systems, complete with LCD display and 2 x USB charging ports 5V @ 2A.

Automatic Battery Voltage recognition..

Features & Specifications

Voltage Range: 12 or 24V Automitic Detection

Current Rating: 20A

Charging: Three stage battery charging (bulk, absorption, float), fully programable

Power Consumption: <10mA

Display: Liquid Crystal Display

USB Charging: Two 5 Volt USB outputs

Load Output: Lighting control function, with low voltage and manual disconnect (programable)

Protection: Load output protected against over load and short circuit also protected against reverse polarity connection of the solar panels and/or battery

Preprogrammed Battery Types: AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Dimensions: H96 x W169 x D36mm Weight 0.15Kg

Warranty: 5 Years
