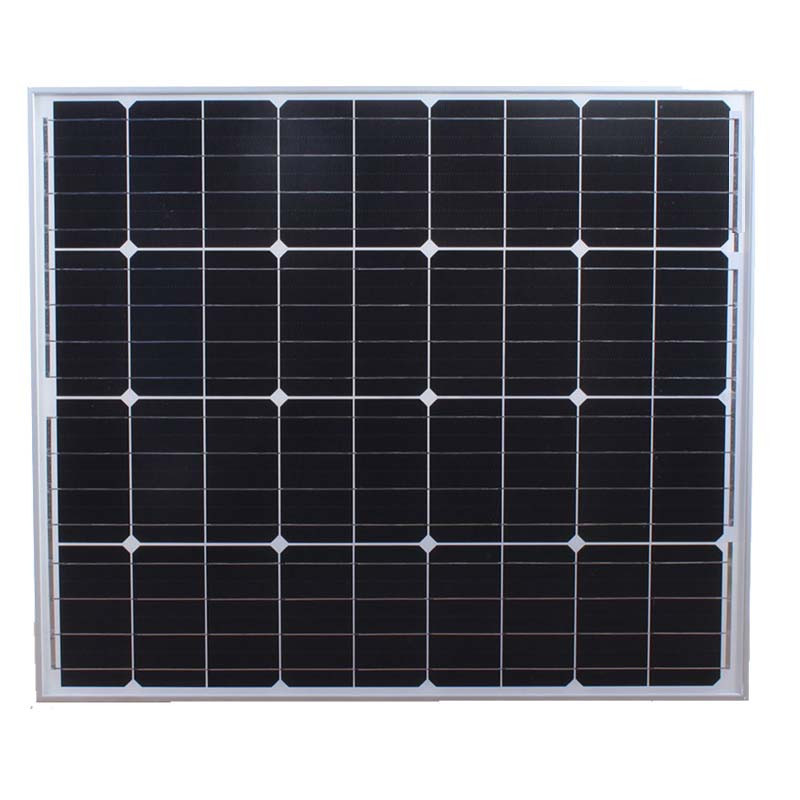

Victron 90W 12V Monocrystalline Series Panel

Victron Solar Panel 90W Monocrstalline Series 4a 780x668x30mm - SPM040901200

A High quality Victron BlueSolar 90W Monocrystalline Solar Panel - 5 Year Material Warranty and 25 Year warranty on power output and performance.

Silver Anodized Aluminium Frame, with Tempered Glass, Cable Terminated with standard MC4 Connectors.

Features & Specifications

- Low voltage-temperature coefficient enhances high-temperature operation.

- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.

- 25-Year limited warranty on power output and performance.

- 5-Year limited warranty on materials and workmanship.

- Sealed, waterproof, multi-functional junction box gives high level of safety.

- High performance bypass diodes minimize the power drop caused by shade.

- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.

- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance

- High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

Electrical Properties

Cell Type: Monocrystalline

Nominal Power (Pmpp): 90W

Max Power Voltage (Vmpp): 19.6V

Max Power Current (Impp): 4.59A

Open Circuit Voltage (Voc): 24.06V

Short Circuit Current (Isc): 5.03A

Panel Properties

Weight: 6.1KGS

Dimensions: 780 x 668 x 30mm

Product Warranty: 5 Years

Output Warranty: 25 Years
