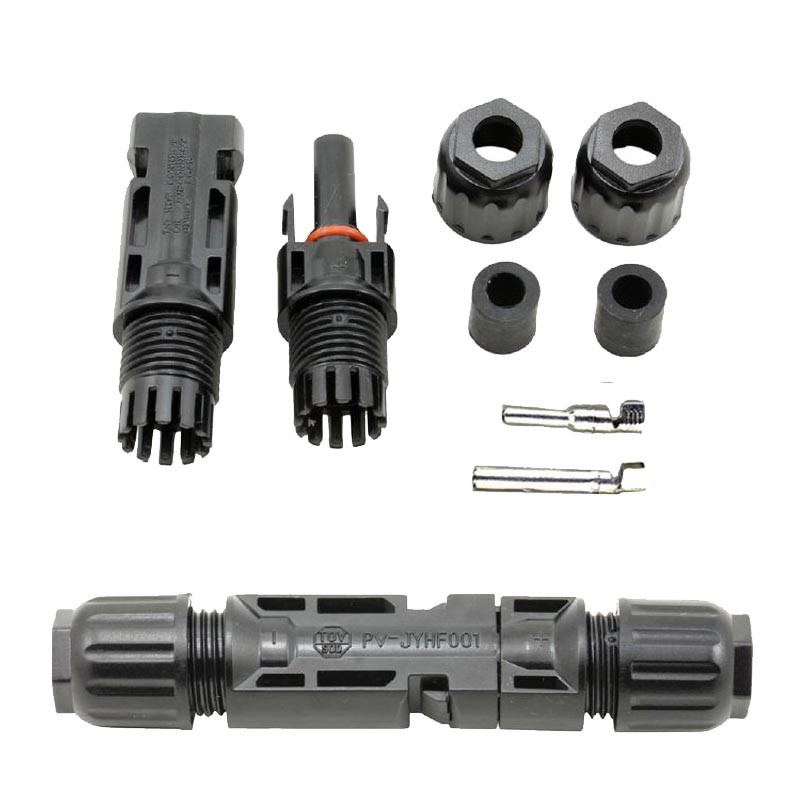

MC4 Connectors Pairs Male and Female

MC4 Connector Pair for 2.5mm², 4mm² or 6mm² Solar PV cable.

A pair of Watertight MC4 Connectors for connection to the appropriate connectors and Solar Panels, Inverters or other compatible equipment.

When terminated correctly these MC4 Connectors ensure a watertight and electrically sound connection to your solar Equipment.

It is recommended to use 2.5mm², 4mm² or 6mm² PV Cable with these connectors to ensure safety, minimum power loss and UV resistance.

When not in use add some MC4 Sealing Caps, available Here

Features & Specifications

PV Cable Size: 4mm² or 6mm²

Suitable Cable: 2.5mm²~6mm²

Degree Of Protection: IP67(IEC 60529)

Rated Voltage: TUV 1000V DC / UL 600VDC

Gender: Male & Female

Temperature Range: -40C~+85C

Rating Current: 30A

Pin Dimension: 4.0mm

Contact Resistance: 5mW
