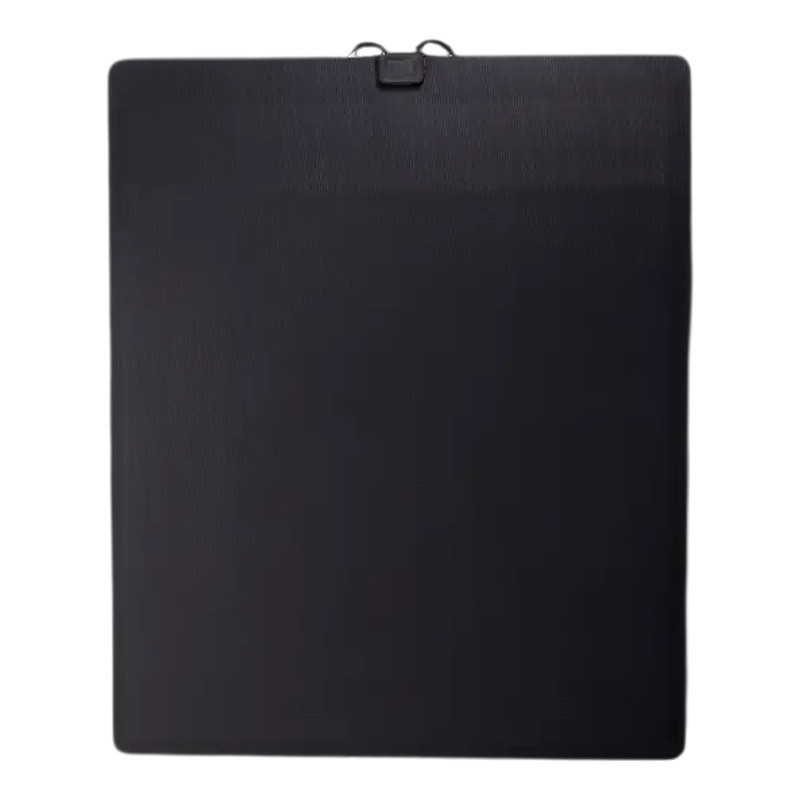

Foxygen 320W ETFE Semi-Flexible Solar Panel

320W ETFE Semi-flexible Solar Panel 1400 x 1150 x 2.5mm with 4m 4mm² PV Cable No MC4 Connectors

320W super lightweight, ETFE panel, with front (top exit) junction box. Feature BC Solar Cells with 25% Efficiency

These hardy panels come with an IP67 waterproof rating. The top of the panel is coated in an ETFE material (Ethylene Tetrafluoroethylene).

The ETFE surface material makes the panel extremely lightweight, whilst at the same time, increasing the physical and chemical protection of the panel.

Their high resistance to salt spray, corrosion and weathering make them ideal for use on houseboats, yachts and caravans.

The ETFE texture on the top side also increases the panel's absorbency by reducing its reflectivity.

Panel comes with a front junction with 4m 4mm² Solar PV Cables with No MC4 Connectors. The panels are semi-rigid, and have a maximum bend of 10%. Their flexibility as well as their ultra low profile makes them perfect for slightly curved surfaces such as narrowboat or motorhome roofs.

Features & Specifications

- Low Installation Profile

- BC (Back Contact) Solar Cells with 25% Efficiency

- Top layer ETFE Material for increased absorption and durability

- Front Cable Exits for flush mounting

- Lightweight construction

Electrical Properties

Cell Type: Monocrystalline - BC (Back Contact) with 25% Efficiency

Nominal Power (Pmpp): 320W

Max Power Voltage (Vmpp): 23.94V

Max Power Current (Impp): 13.37A

Open Circuit Voltage (Voc): 29.40V

Short Circuit Current (Isc): 14.57A

Temperature Coefficient (Pmax): -0.35%/°C

Temperature Coefficient (Isc): +0.04%/°C

Temperature Coefficient (Voc): -0.25%/°C

STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5.

Panel Properties

Weight: 5.75Kgs

Dimensions: 1400 x 1150 x 2.5mm

Cable: 2 x 4m 4mm² Solar PV Cable NO MC4 Connectors

Product Warranty: 3 Years
