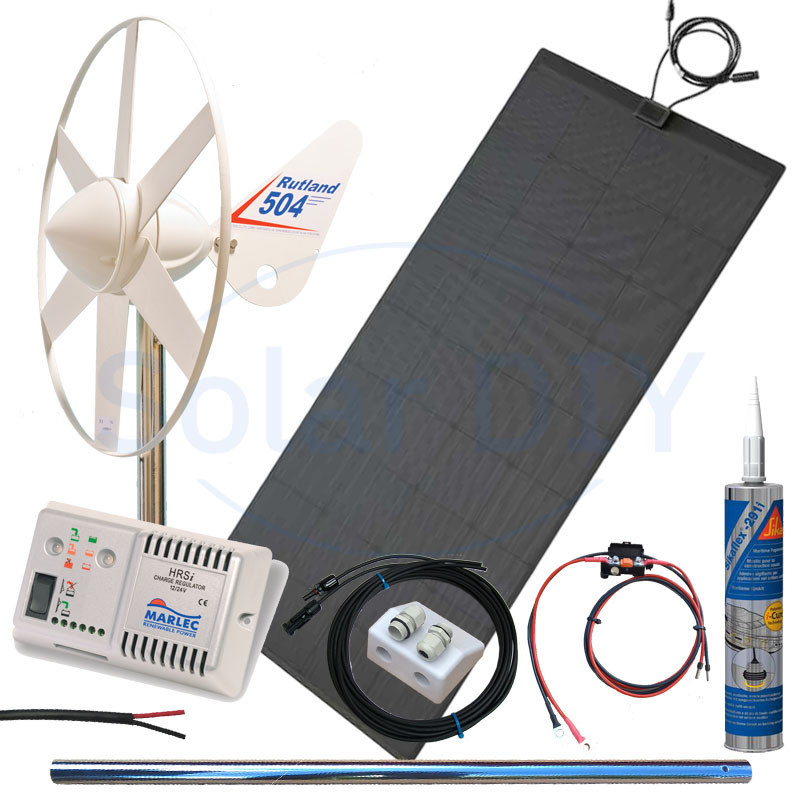

230W Marine Hybrid Kit Rutland 504 150W Semi-Flexible (Front Exit)

230W Marine Hybrid Wind & Solar Charging Kit- Rutland 504 Windcharger, 150W ETFE Sem-flexible Monocrystalline Solar Panel.

Hybrid Wind and Solar Kit with a max of Wind Output of 80W plus a 150W ETFE Semi-flexible Monocrystalline Solar Panel giving a Total Max Output of 230W.

1m Marine Grade Stainless Steel Pole for the Rutland 504 and a Dual Entry Cable Gland. Sikaflex 291i Marine Grade Sealant\Adhesive.

Also Included is a 5m reel of Oceanflex 2.5mm Marine Grade Cable for the windcharger, cut to length as required, the Solar Panel has 2.5m of Cable included and attached. Also included is a 1.5m 6mm² Charge Cable with inline Midi fuse.

Kit Features & Specifications

For full Details and specifications please see each products Description and attached Datasheets

Windcharger: Rutland 504 Series Windcharger with 80W Max Output

Solar Panel: 150W ETFE Semi-flexible Monocrystalline Panel (Front Exit) 12V Systems

Charge Controller: Marlec HRSi PWM Charge Regulator for Wind & Solar Dual input. (160W Max PV)

Charger Cable: 5m 2.5mm Oceanflex Marine Grade cable for the Windcharger and Solar Panel- Cut to length as required

PV Cable: 5m 4mm² TUV Solar PV Cable.

Cable Harness: 1.5m 6mm² Multistrand Copper Cable with an inline Midi fuse and Ring Terminals on the battery end

Fuse & Fuseholder: Midi Fuseholder with 30A Midi Fuse

Windcharger Mounting: 1000mm x 38mm Marine Grade Stainless Steel Pole for the 504 Windcharger

Solar Mountings: White Dual Entry Cable Gland

Adhesive-Sealant: Sikaflex 291i Marine Grade Adhesive Sealant
