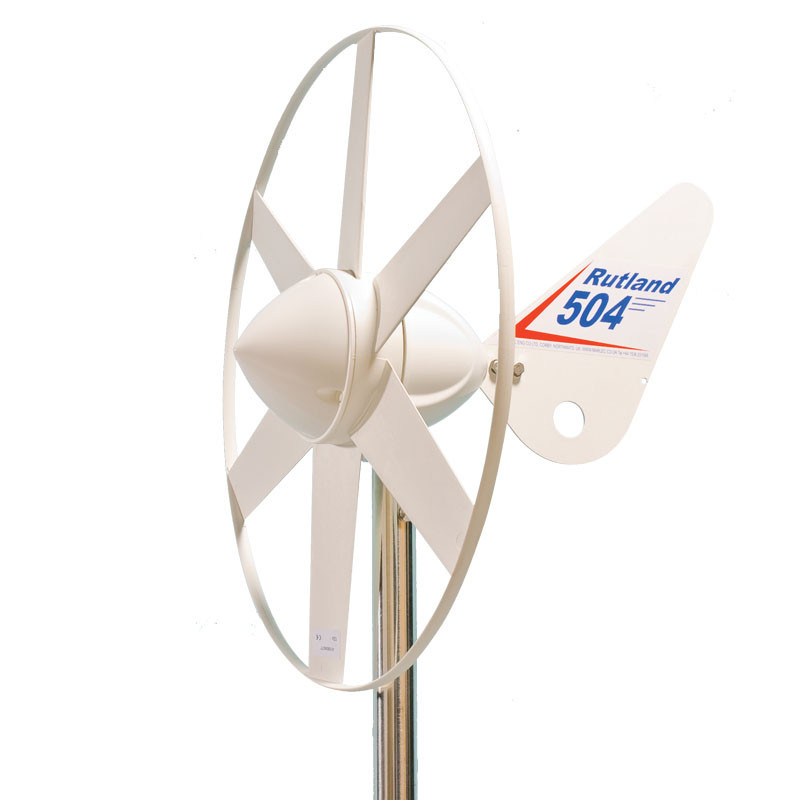

Rutland 504 Windcharger 12V

12V Rutland 504 Windcharger 48W(3.4A). (Pole Not Included)

The Rutland 504 is a super compact turbine that is great for using wind power for trickle charging.

You can be sure that when you arrive on board your batteries will be well charged up and ready for your appliances. Even whilst sailing the Rutland 504 powers on…

Features & Specifications

Cut in Windspeed: 3 m/s

Output Voltages Available: (Nominal)12V

Power / Current Ratings:
5m/s    10knots      3W(0.2A)
11m/s    21knots      29W(2.1A)
15m/s   29knots     48W(3.4A)

Packed Weight & Dimensions: 6 Kg 550x550x260mm

Generator Type: Low friction 3 phase, brushless

Yaw Rotation: Slipring for 360° free rotation. Low brush wear.

Governing Devices: None

Turbine Diameter: 510 mm

Turning Radius: 304 mm

Net Weight: 3.5 kg
