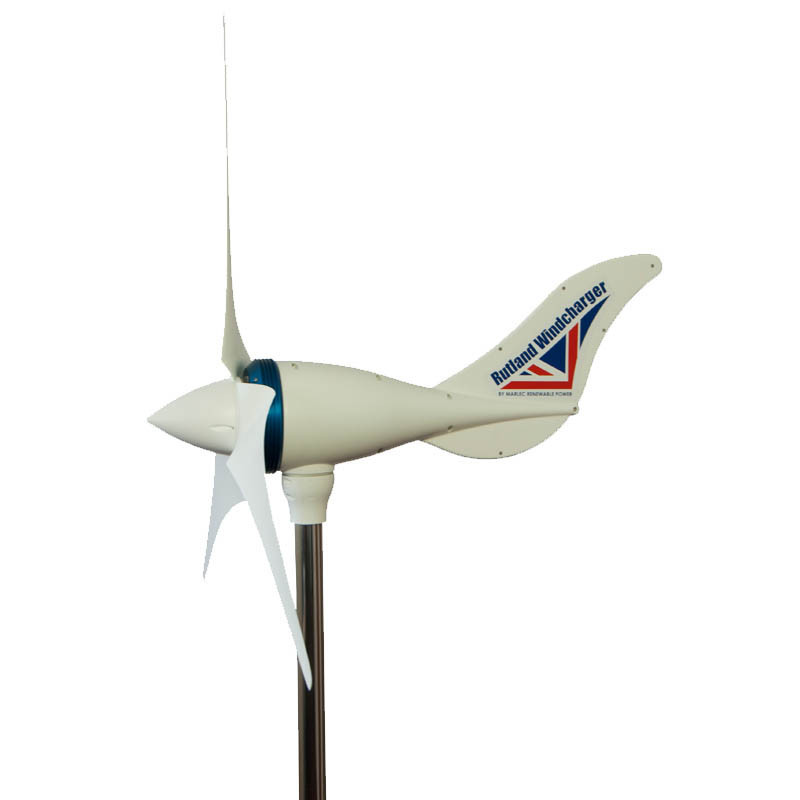

Rutland 1200 Marine Windcharger 24V MPPT Controller

12V Rutland 1200 Marine Windcharger including MPPT Charge Controller483W @15m/s. (Pole Not Included)

Experience the powerful but quiet operation of the new Tri-namic profile blade.

This latest turbine, the Rutland 1200, is the ideal companion for generating energy on board, read on to find out why it is the most technologically advanced micro wind turbine and controller in its class.

What is the Rutland 1200 Marine Windcharger?

The Rutland 1200 Marine is the latest in the Rutland family of marine turbines used by yachtsmen around the world since our first model in 1978. This high efficiency and technologically advanced turbine uses a high-tech MPPT controller specifically designed for charging 2 battery banks with the feature to accept input for solar panels.

When you need a reliable source of power on-board, take a look at the Rutland 1200 Marine turbine. Designed, developed and manufactured by Marlec in the UK, the Rutland 1200 Marine captures the energy in the wind to provide the power you need for fully charged batteries on board. The almost silent operation is a key feature of this innovative marine turbine that’s specifically designed for the power needs of yachts 12m or more.

Features & Specifications

Cut in Windspeed: 2.5 m/s

Output Voltages Available: (Nominal)24V

Power / Current Ratings:
5m/s    10knots      40W (1.45A)
11m/s    21knots      290W (10.7A)
15m/s   29knots     483W (17.76A)

Packed Weight & Dimensions: 900 x 390 x 185mm, 11.25kg

Generator Type: Low friction, brushless 3 phase alternator with high specification rare earth magnets

Yaw Rotation: Slipring and brush gear for 360º free rotation

Post Fixing Internal / External Diameter: 41mm / 48mm over a minimum of 600mm length to clear blade tips

Minimum Tower Height: Minimum 2.7m On-Board

Governing Devices: Electronic stalling for electrical protection and to prevent over-charging

Turbine Diameter: 1200mm

Turning Radius: 620mm

Net Weight:    7.8 kg

MPPT Charge ControllerFeatures & Specifications

This purpose designed Rutland 1200 Marine Hybrid Controller incorporates hi-tech features to fully optimise power generation from both the turbine and solar panels and to prevent overcharging the batteries.

The facility for charging 2 battery banks is an especially useful feature on-board.

The controller is a key component in the Rutland 1200’s holistic design by Marlec providing intelligence at managing the renewable energy generation.

By design the controller will operate with lead acid, AGM and gel batteries. The charge parameters can be programmed using the Rutland Controller Interface cable and PC App for other battery technologies.

*See Manual for complete details of the MPPT Controller*

Controller Dimensions & Weight: 258 x 164 x 68mm, 1.3kg (10 x 6.45 x 2.67in, 2.86lbs)
NB: 5cm clearance required on all sides
