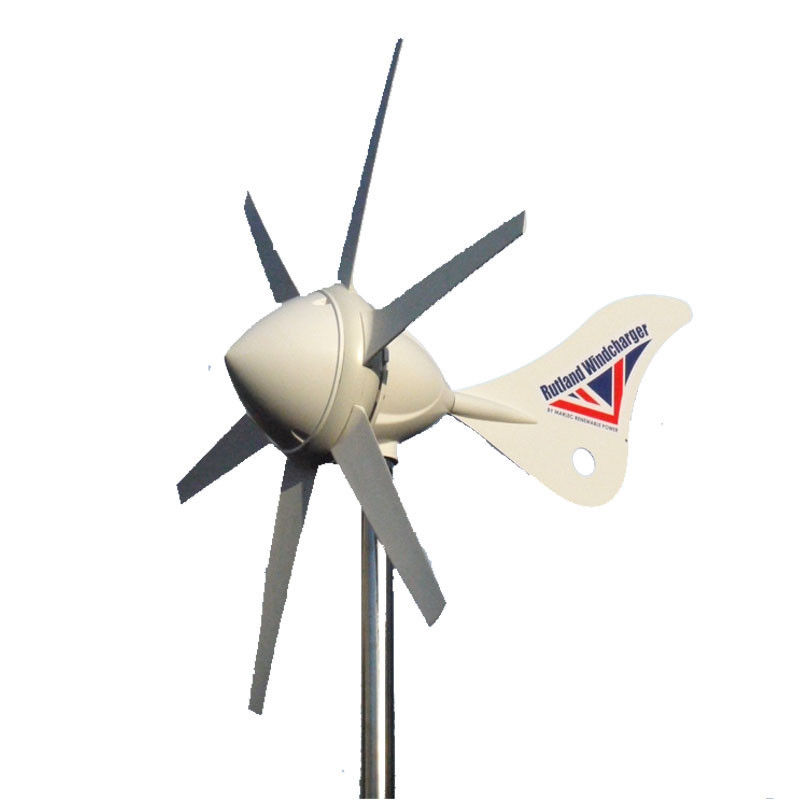

Rutland 914i Windcharger 24V

24V Rutland 914i Windcharger 262W @15m/s. (Pole Not Included)

The Rutland 914i punches well above its size for power, rivalling the claimed outputs of larger turbines owing to it’s built-in MPPT technology.

This continuously matches the turbine speed and generator to their optimum performance to deliver more ampere hours into your battery, a by-product of this optimised efficiency is a virtually silent wind turbine.

Features & Specifications

Cut in Windspeed: 3 m/s

Output Voltages Available: (Nominal)24V

Power / Current Ratings:
5m/s    10knots      24W(0.8)
11m/s    21knots      143W(5.1A)
15m/s   29knots     262W(9.4A)

Packed Weight & Dimensions: 13.1kg 370 x 300 x 450mm

Generator Type: Low friction 3 phase, brushless

Yaw Rotation: Slipring for 360° free rotation. Low brush wear.

Governing Devices: None

Turbine Diameter: 910 mm

Turning Radius: 557 mm

Net Weight: 11.58 kg
