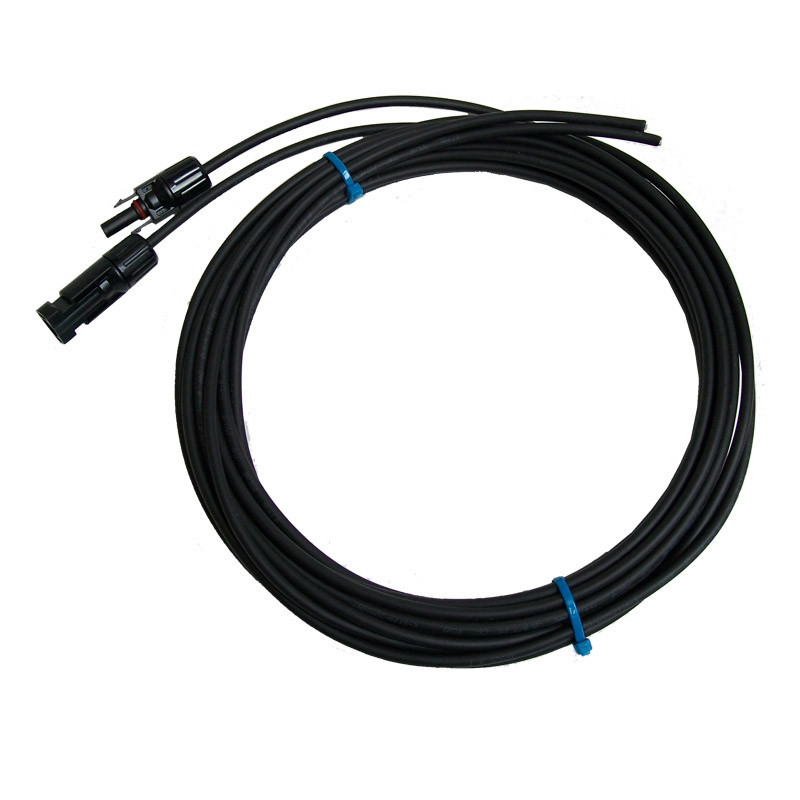

Various Length 4mm Solar Cables MC4 Single Ends

UK Made Pairs of 4mm Solar PV Cables MC4 Single ended Male and Female Connectors. 5 Year Warranty.

This cable is ideal for connecting solar panels to a charge controller as it has a male and female MC4 connector which match those of most solar panels.  The MC4 connectors create a watertight connection ensuring a good connection.

The cable is durable to all weather and UV conditions and comes complete with a 5 Year warranty and a 20 year lifespan for peace of mind.

Features & Specifications

Cable that is specially designed to be used in photovoltaic systems. These cables are highly UV radiation resistant and operate in a wide range of ambient temperatures (usually from -40°C up to +90°C).

They are weather resistant and guarantee long-life operation.

Cable Certifications: ISO 9001, UKCA & CE

Cable Standard: EN 50618

Cable Lenght: Per Selection

Core Size: 4mm

Conductor: Tinned Copper Fine Stranded

Diameter: 5.6mm

Min Bending Radius: 5xD

Current Capacity: 30A Inluding MC4 - 50A Cable Only

Max Voltage: AC 1000/1000, DC 1500/1500

Min/Max Operating Tempertature: -40°C/90°C

Max Conductor Resistance at 20°C: 5.09 (Ohm/km)

Short Circuit Temperature: 200°C

Outer Sheather Colour: Black

MC4 Connectors: Male and Female x 1

Warranty: 5 Years

Lifespan: 20 Years
