Triple MC4 Branch Connectors 3 into 1

Name: Triple MC4 Branch Connectors 3 into 1
Brand: Solar DIY
SKU: SC-3-1MC4B
Price: 7.95 GBP
Availability: InStock

Reference SC-3-1MC4B

Brand Solar DIY

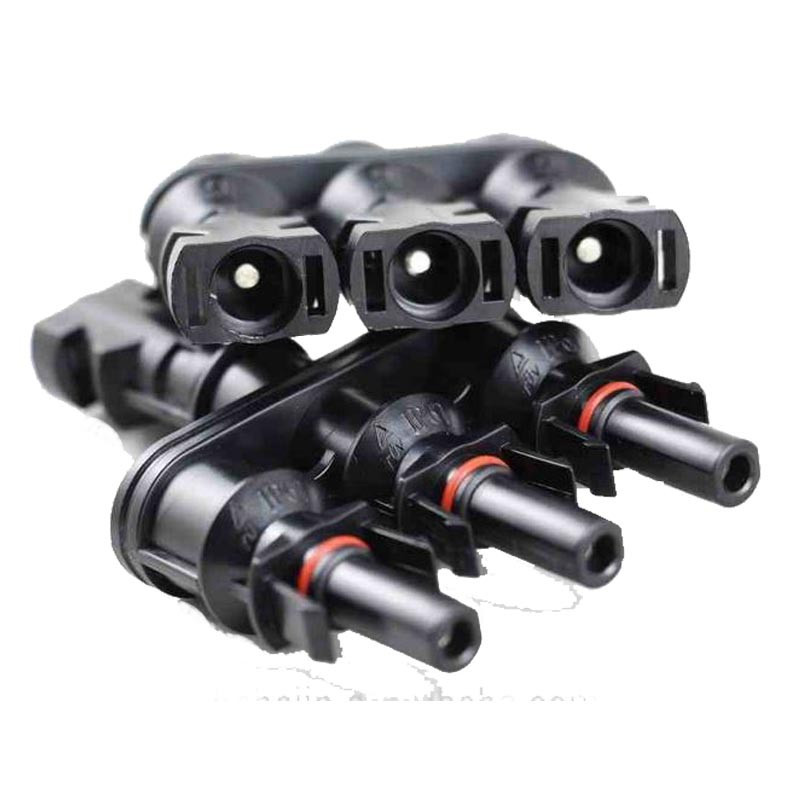

One Pair of Triple MC4 Branch Connectors 3 into 1 TUV Certified.

Connect 3 Solar Panels with MC4 Connectors into one Output.

£7.95

VAT included

Quantity

In stock: 2 Items

Ask about the product on WhatsApp

Delivery policy

Return Policy

Secure Payment

Description
Product Details

Description

A pair of TUV Certified MC4 Triple Branch Connectors 3 inputs into 1 Output.

These 3 into 1 MC4 Branch Connectors are perfect for connecting three solar panels in parallel to a PWM charge controller where the voltage must stay below the rated value.

Note: The current will triple if using the same solar panels but the voltage will stay the same. Cabling must be suitable for the higher currents. The Pairs are 1xMale Male Male>Female and 1xFemale Female Female>Male.

Features & Specifications

Rated Current: 30A

Rated Voltage: 1500V DC

Temperature Range: -40°C - 80°C

Water Resistant: IP67

Contact Resistance: <0.5 ohm

Connections: MMM>F + FFF>M

Certification: TUV Certified

Product Details

Reference SC-3-1MC4B

In stock 2 Items
