Various Length 6mm Solar Fly Leads MC4

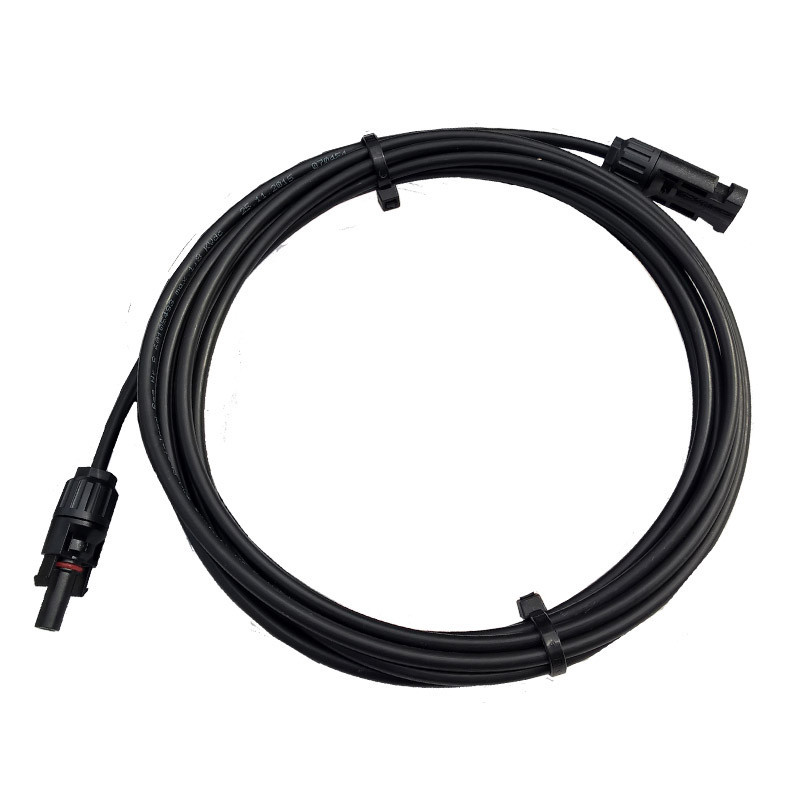

UK Made 6mm Solar PV Fly Lead Cable MC4 Male and Female Connectors one each end. 5 Year Warranty.

This cable is ideal for connecting between solar panels in series where the length of the panel cable will not reach. It has male and female MC4 connectors one on each end.  The MC4 connectors create a watertight connection ensuring a good connection.

The cable is durable to all weather and UV conditions and comes complete with a 5 Year warranty and a 20 year lifespan for peace of mind.

Features & Specifications

Cable that is specially designed to be used in photovoltaic systems. These cables are highly UV radiation resistant and operate in a wide range of ambient temperatures (usually from -40°C up to +90°C).

They are weather resistant and guarantee long-life operation.

Cable Certifications: ISO 9001, UKCA & CE

Cable Standard: EN 50618

Cable Lenght: Per Selection

Core Size: 6mm

Conductor: Tinned Copper Fine Stranded

Diameter: 6.1mm

Min Bending Radius: 5xD

Current Capacity: 30A Inluding MC4 - 70A Cable Only

Max Voltage: AC 1000/1000, DC 1500/1500

Min/Max Operating Tempertature: -40°C/90°C

Max Conductor Resistance at 20°C: 3.39 (Ohm/km)

Short Circuit Temperature: 200°C

Outer Sheather Colour: Black

MC4 Connectors: Male and Female x 1

Warranty: 5 Years

Lifespan: 20 Years
