Various Length 6mm Solar Cables MC4 Single Ends
Home

  • Secure Shopping

    Secure Shopping
  • New
6mm Solar PV Cable Single Ended
  • 6mm Solar PV Cable Single Ended
  • Various Length 6mm Solar Cables MC4 Single Ends

Various Length 6mm Solar Cables MC4 Single Ends

SC-56BSMC4
Solar DIY

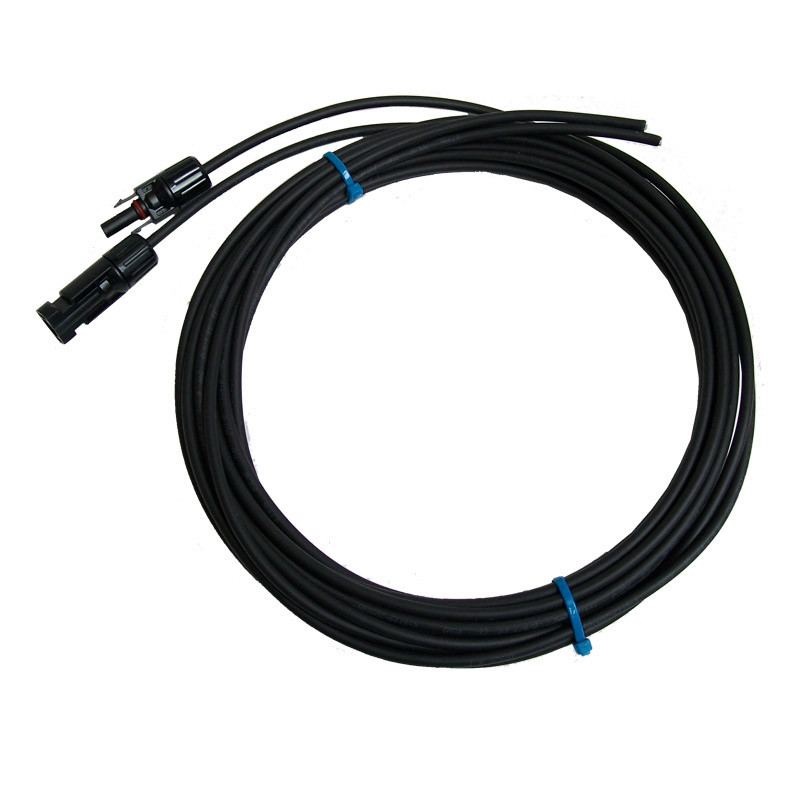

UK Made various length Pairs of Black 6mm Solar PV Cables MC4 Single ended, Male and Female Connectors. 5 Year Warranty.

Terminated one end with a male and female MC4 connector.

Size
Length
£17.95
VAT included
Quantity
10 Items

Ask about the product on WhatsApp


Delivery policy



Return Policy



Secure Payment

Description
UK Made Pairs of 6mm Solar PV Cables MC4 Single ended Male and Female Connectors. 5 Year Warranty.

This cable is ideal for connecting solar panels to a charge controller as it has a male and female MC4 connector which match those of most solar panels.  The MC4 connectors create a watertight connection ensuring a good connection.

The cable is durable to all weather and UV conditions and comes complete with a 5 Year warranty and a 20 year lifespan for peace of mind. 6mm Cable is better suited for higher current applications than 4mm.

Features & Specifications

Cable that is specially designed to be used in photovoltaic systems. These cables are highly UV radiation resistant and operate in a wide range of ambient temperatures (usually from -40°C up to +90°C).

They are weather resistant and guarantee long-life operation.

Cable Certifications: ISO 9001, UKCA & CE

Cable Standard: EN 50618

Cable Lenght: Per Selection

Core Size: 6mm

Conductor: Tinned Copper Fine Stranded

Diameter: 6.1mm

Min Bending Radius: 5xD

Current Capacity: 30A Inluding MC4 - 70A Cable Only

Max Voltage: AC 1000/1000, DC 1500/1500

Min/Max Operating Tempertature: -40°C/90°C

Max Conductor Resistance at 20°C: 3.39 (Ohm/km)

Short Circuit Temperature: 200°C

Outer Sheather Colour: Black

MC4 Connectors: Male and Female x 1

Warranty: 5 Years

Lifespan: 20 Years

Product Details
SC-56BSMC4
10 Items
