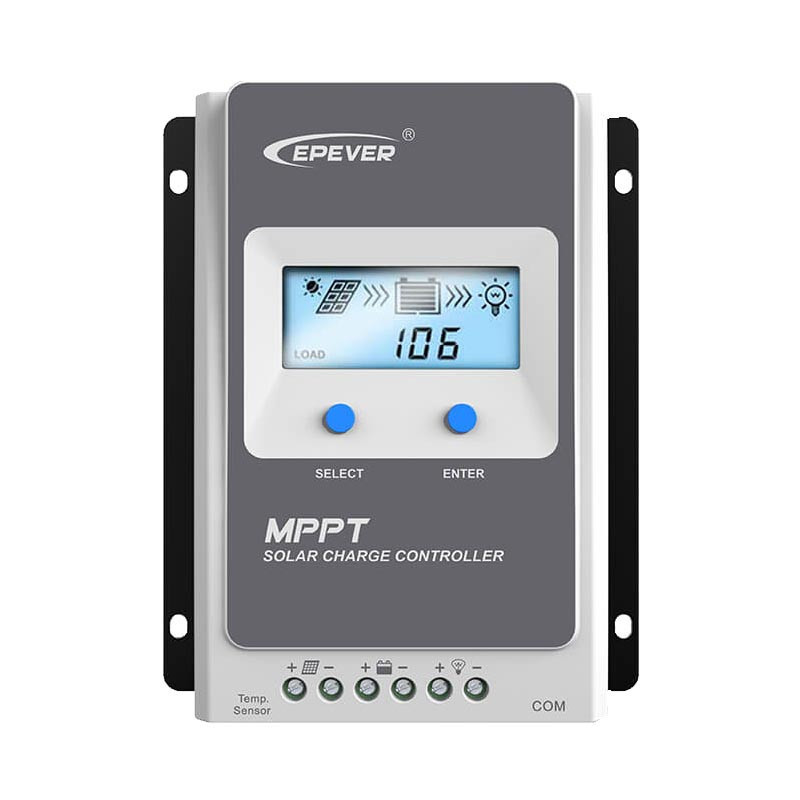

Epever Tracer 1206AN 10A MPPT Charge Controller

Epever Tracer 1206AN 10A MPPT Charge Controller.

A quality MMPT Controller from a trusted manufacturer with a rated charge power of 130W 12V, 260W 24V.

True MPPT Controllers maximise the output from your Solar Array into usable charging energy.

The MPPT (Maximum Power Point Tracking) is fast in response to shading and works better in low light in the mornings and evenings, this maximises the useful light into power for your system.

Features & Specifications

Voltage Range: 12 or 24V Automitic Detection

Current Rating: 10A

Maximum Open Circuit PV Voltage: 60V

Charging: Three stage battery charging (bulk, absorption, float), fully programable

Display: LCD Display

Remote Management: Optional MT50 Remote Monitor availale Here

Connectivity: RJ85

Temperature Sensor: Optional Epever Temp Sensor available Here

Load Output: Lighting control function, with low voltage and manual disconnect (programable)

Protection: Load output protected against over load and short circuit also protected against reverse polarity connection of the solar panels and/or battery

Dimensions: H100 x W113 x D40mm Weight 0.5Kg

Warranty: 2 Years
