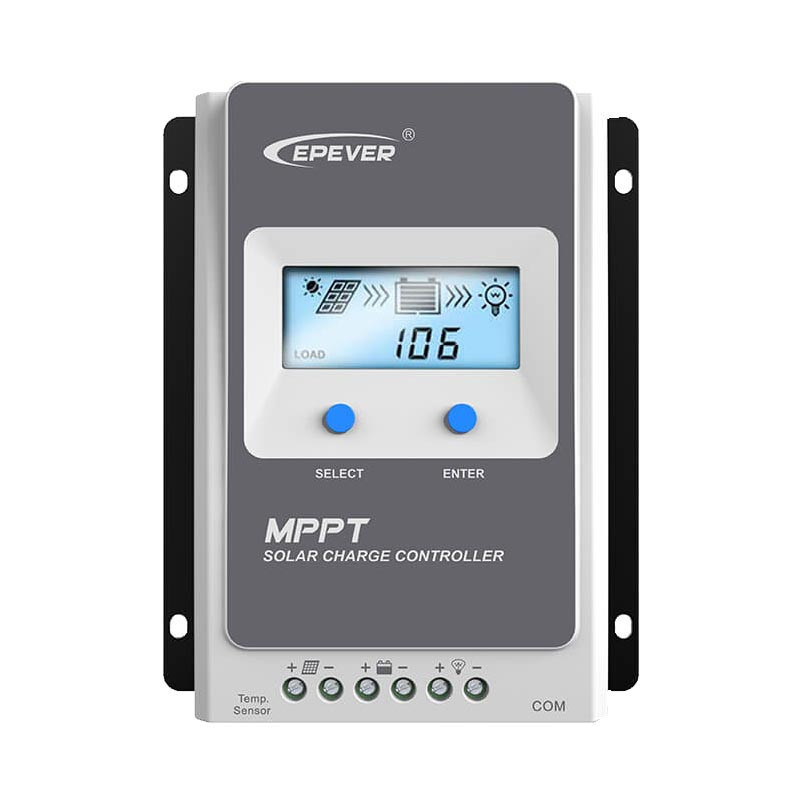

Epever Tracer 2210AN 20A MPPT Charge Controller

Epever Tracer 2210AN 20A MPPT Charge Controller.

A quality MMPT Controller from a trusted manufacturer with a rated charge power of 260W 12V, 520W 24V.

True MPPT Controllers maximise the output from your Solar Array into usable charging energy.

The MPPT (Maximum Power Point Tracking) is fast in response to shading and works better in low light in the mornings and evenings, this maximises the useful light into power for your system.

Features & Specifications

Voltage Range: 12 or 24V Automitic Detection

Current Rating: 20A

Maximum Open Circuit PV Voltage: 100V

Charging: Three stage battery charging (bulk, absorption, float), fully programable

Display: LCD Display

Remote Management: Optional MT50 Remote Monitor availale Here

Connectivity: RJ85

Temperature Sensor: Optional Epever Temp Sensor available Here

Load Output: Lighting control function, with low voltage and manual disconnect (programable)

Protection: Load output protected against over load and short circuit also protected against reverse polarity connection of the solar panels and/or battery

Dimensions: H220 x W154 x D52mm Weight 0.94Kg

Warranty: 2 Years
