210W Mobile Hybrid Kit Rutland 504 Victron 130W Mono

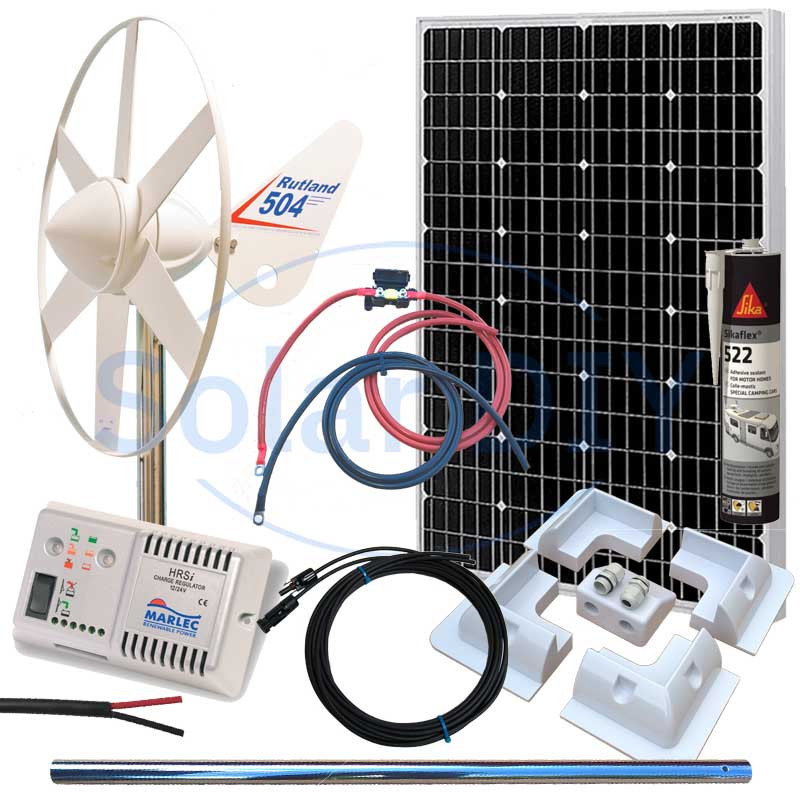

210W Mobile Hybrid Wind & Solar Charging Kit- Rutland 504 Windcharger, Victron 130W Monocrystalline Solar Panels with Mountings and Cables

Hybrid Wind and Solar Kit with a max of 80W Output plus a Victron 130W Monocrystalline Solar Panel giving a Total Max Output of 210W.

1m Marine Grade Stainless Steel Pole for the Rutland 504 and a 5 Piece White ABS Mounting Kit including cable gland. Sikaflex 522 Caravan and Motorhome Sealant\Adhesive.

Also Included is a 5m reel of Oceanflex 2.5mm Marine Grade Cable for the windcharger, cut to length as required, 5m 4mm Solar PV Cable for the panel, a 1.5m 6mm Cable Harness with Midi Fuseholder and 30A Midi Fuse.

Kit Features & Specifications

For full Details and specifications please see each products Description and attached Datasheets

Windcharger: Rutland 504 Series Windcharger with 80W Max Output

Solar Panel: 130W Victron Monocrstalline Aluminium Framed Rigid Solar Panel for 12V Systems

Charge Controller: Marlec HRSi PWM Charge Regulator for Wind & Solar Dual input. (160W Max PV)

Cable: 5m 2.5mm Oceanflex Marine Grade cable for the Windcharger and Solar Panel- Cut to length as required.

PV Cable: 5m 4mm Solar PV Cable with MC4 Connectors Termianted one end

Cable Harness: 1.5m 6mm² Multistrand Copper Cable with Ring Terminals on the battery end

Fuse & Fuseholder: Midi Fuseholder and 30A Midi Fuse

Windcharger Mounting: 1000mm x 38mm Marine Grade Stainless Steel Pole for the 504 Windcharger

Solar Mountings: 5 Piece White ABS Mounting Kit with 4 x Corner Mounts and a Dual Entry Cable Gland.

Sealant: Sikaflex 522 Caravan and Motorhome Sealant\Adhesive.
