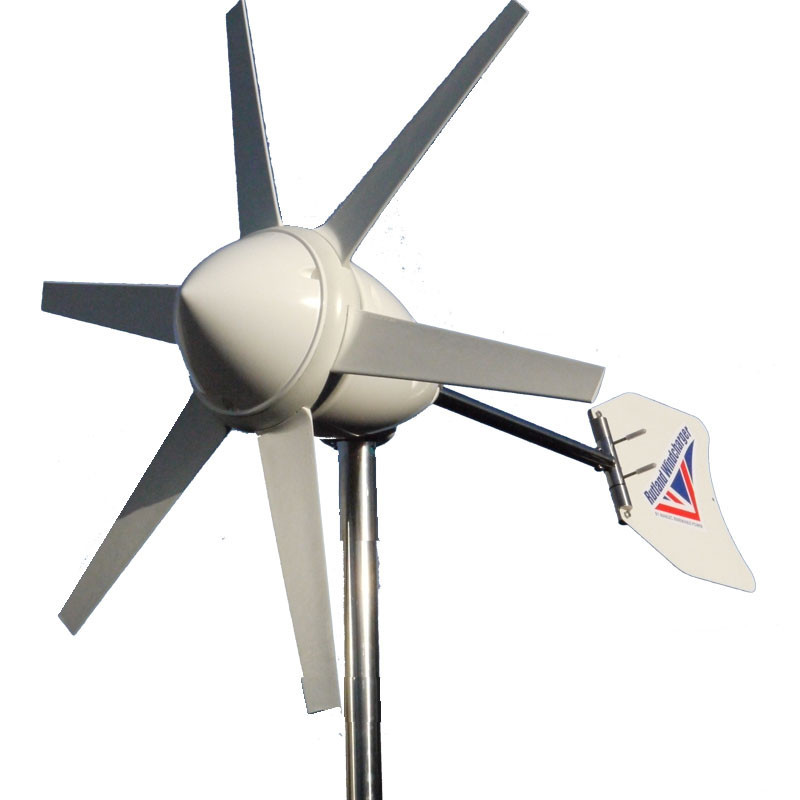

Rutland FM910-4 Windcharger 24V

12V Rutland FM-910-4 Windcharger 115W @15m/s. (Pole Not Included)

The FM910-4 Furlmatic is without doubt the engineer’s choice of micro wind turbine for battery charging at off grid locations.

Countless organisations worldwide have installed tens of thousands of Furlmatics because, simply, their reliability in the toughest weather conditions is so well proven.

Features & Specifications

Cut in Windspeed: 3 m/s

Output Voltages Available: (Nominal)12V

Power / Current Ratings:
5m/s    10knots      19W (0.7A)
11m/s    21knots      92W (3.3A)
15m/s   29knots     155W (5.6A)

Packed Weight & Dimensions: 16kg 945 x 344 x 262

Generator Type: Low friction 3 phase, brushless

Yaw Rotation: Slipring for 360° free rotation. Low brush wear.

Governing Devices: Tail fin mechanically furls at 15m/s to reduce turbine speed.

Turbine Diameter: 910 mm

Turning Radius: 794 mm

Net Weight:    13.1 kg
