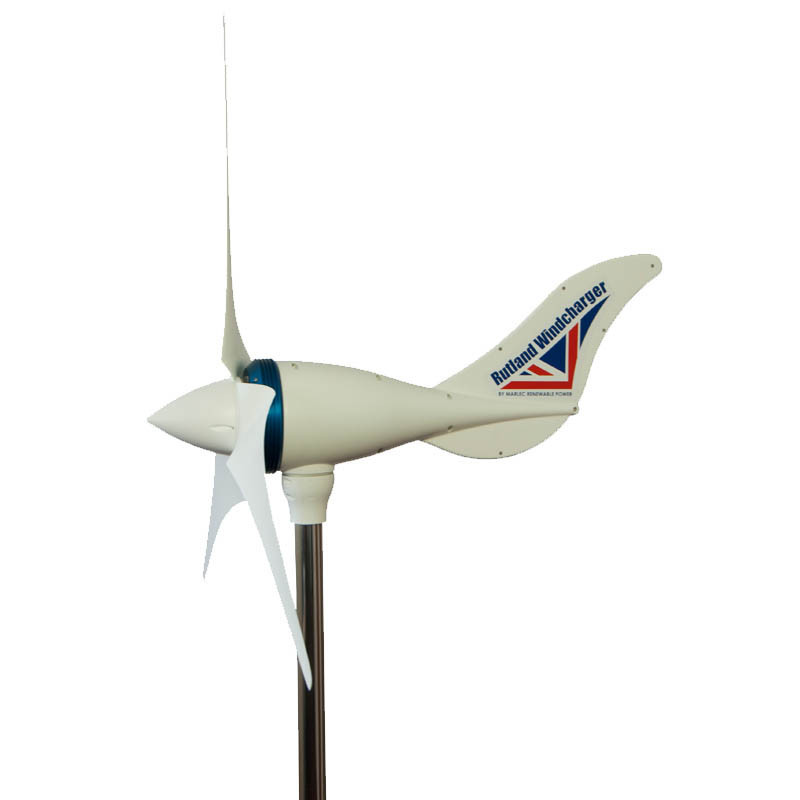

Rutland 1200 Terrain Windcharger 48V MPPT Controller

48V Rutland 1200 Terrain Windcharger including MPPT Charge Controller 483W @15m/s. (Pole Not Included)

When you need a reliable source of power at an off-grid site, take a look at the Rutland 1200 Terrain turbine. Designed, developed and manufactured in the UK.

The latest Rutland 1200 Terrain is available in 12V, 24V and 48V models.

What is the Rutland 1200 Terrain Windcharger?

The Rutland 1200 Terrain is the newest addition to Marlec’s world renowned Rutland Windcharger range.

This new land based turbine works alongside it’s technologically advanced MPPT controller specifically designed for land.

When you need a reliable source of power at an off-grid site, take a look at the Rutland 1200 Terrain turbine. Designed, developed and manufactured by Marlec in the UK.

The latest Rutland 1200 Terrain captures the energy in the wind to provide the power you need for operating low energy devices at remote locations.

Power that is generated is stored in the batteries, ready for when it is needed and these can also be separately charged in parallel with solar panels or generators.

Typical Applications

- Remote Homes, Caravans & Motorhomes

- CCTV, Telecommunication, Instrumentation

- Street lighting and signage, remotel ighting, refrigeration, TV etc

Features & Specifications

Cut in Windspeed: 2.5 m/s

Output Voltages Available: (Nominal)48V

Power / Current Ratings:
5m/s    10knots      40W(0.75A)
11m/s    21knots      290W(5.35A)
15m/s   29knots     483W(8.75A)

Packed Weight & Dimensions: 900 x 390 x 185mm, 11.25kg

Generator Type: Low friction, brushless 3 phase alternator with high specification rare earth magnets

Yaw Rotation: Slipring and brush gear for 360º free rotation

Post Fixing Internal / External Diameter: 41mm / 48mm over a minimum of 600mm length to clear blade tips

Minimum Tower Height: Minimum 2.7m On-Board

Governing Devices: Electronic stalling for electrical protection and to prevent over-charging

Turbine Diameter: 1200mm

Turning Radius: 620mm

Net Weight:    7.8 kg

MPPT Charge ControllerFeatures & Specifications

This purpose designed Rutland 1200 Marine Hybrid Controller incorporates hi-tech features to fully optimise power generation from both the turbine and solar panels and to prevent overcharging the batteries.

The facility for charging 2 battery banks is an especially useful feature on-board.

The controller is a key component in the Rutland 1200’s holistic design by Marlec providing intelligence at managing the renewable energy generation.

By design the controller will operate with lead acid, AGM and gel batteries. The charge parameters can be programmed using the Rutland Controller Interface cable and PC App for other battery technologies.

*See Manual for complete details of the MPPT Controller*

Controller Dimensions & Weight: 258 x 164 x 68mm, 1.3kg (10 x 6.45 x 2.67in, 2.86lbs)
NB: 5cm clearance required on all sides
